1982 - 1992 GM "F" Body Vehicles

SHOW PREPARED MODEL

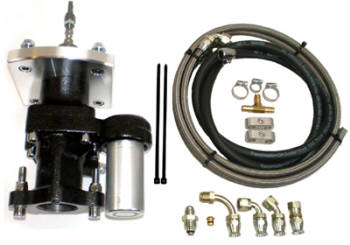

SHOWN WITH PS LINE SET
Price: $818 THIS IS THE BASE MODEL BRAKE ASSIST UNIT ITSELF - ADD OPTIONS BELOW

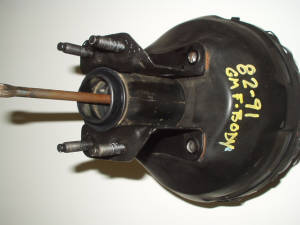

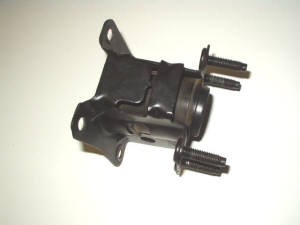

* NOTE: Must carefully grind off the rivet heads holding this standoff bracket from the original vaccum booster and transfer to the replacement booster assembly
  NOTE: Part # 3024L is the brake unit itself without power steering line set. Part # 3024 is the brake unit with the 4' power steering line set
* MUST SPECIFY EXACT YEAR / MAKE / MODEL DURING CHECKOUT IF ADDING A MASTER CYLINDER TO YOUR ORDER *
1982 - 1992 General Motors 'F' Body Hydraulic Brake Assist Unit - Model # 3024
o CNC Machined T6 billet aluminum mounting plate design - no firewall modifications required
o This model requires the transfer of the original vacuum booster bracket
 o All engines with PS pump on driver's side - compatible with rack and pinion conversions
o For use with factory 3rd gen master cylinders and disc / drum or disc / disc brakes
 o Features an adjustable brake pedal rod to allow for a range of brake pedal height adjustment
 o Models with PS line set include overlength hoses with re-usable / re-buildable hose ends
 o 6 3/8 " installed length from backside of mounting plate to MC mounting flange
®
