1963 - 1967 Chevrolet C2 Corvette

o CNC Machined T6 billet aluminum direct fit firewall mounting plate design
o This model fits the later GM "short rod / shallow" master cylinder design

o
All engines with PS pump on driver's side - compatible with rack and pinion conversions
o For use with disc / drum or disc / disc brakes (not for use with 4 wheel drum brakes)
o Features an adjustable brake pedal rod to allow for a range of brake pedal height adjustment
o
Models with 4' / 6' PS line set include overlength hoses with re-usable / re-buildable hose ends
o
Models with pre-assembled PS line set are direct fit for use with stock steering only
o 8.75" installed length from firewall to MC mounting flange - no firewall modifications required
Price: $710 THIS IS THE BASE MODEL BRAKE ASSIST UNIT WITH THE MASTER CYLINDER - ADD OPTIONS BELOW




NOTE: Part # 4002L is the brake unit itself without power steering line set. Part # 4002 is the brake unit with the 4' power steering line set.
This model clocks the brake unit 90 counterclockwise with the power steering line connections on the driver's side of the brake unit
This model is a highly specialized design that includes the vertical bolt pattern master cylinder # MC8147
1963 - 1967 Chevrolet Corvette Hydraulic Brake Assist Unit - Model # 4002
 1963 - 1967 Chevrolet Corvette Hydraulic Brake Assist Unit - Model # 3003
Price: $610 THIS IS THE BASE MODEL BRAKE ASSIST UNIT ITSELF - ADD OPTIONS BELOW

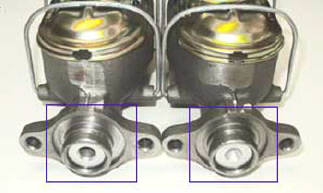

*GM deep vs. shallow master cylinder design:
"early / deep"                 "late / shallow"
NOTE: Part # 3002L is the brake unit itself without power steering line set. Part # 3002 is the brake unit with the 4' power steering line set
This model is identical in all ways to the 3003 model except for being equipped with the early / deep style long MC pushrod
"early / long MC pushrod"                                     "late / short MC pushrod"
1963 - 1967 Chevrolet Corvette Hydraulic Brake Assist Unit - Model # 3002
o CNC Machined T6 billet aluminum direct fit firewall mounting plate design
o This model fits the  earlier GM "long rod / deep" master cylinder design

o
All engines with PS pump on driver's side - compatible with rack and pinion conversions
o For use with disc / drum or disc / disc brakes (not for use with 4 wheel drum brakes)
o Features an adjustable brake pedal rod to allow for a range of brake pedal height adjustment
o Models with 4' / 6' PS line set include overlength hoses with re-usable / re-buildable hose ends
o
Models with pre-assembled PS line set are direct fit for use with stock steering only
o 8.75" installed length from firewall to MC mounting flange - no firewall modifications required
Price: $610 THIS IS THE BASE MODEL BRAKE ASSIST UNIT ITSELF - ADD OPTIONS BELOW





NOTE: Part # 3003L is the brake unit itself without power steering line set. Part # 3003 is the brake unit with the 4' power steering line set.
This model is identical in all ways to the 3002 model except for being equipped with the late / shallow style short MC pushrod
IMPORTANT - PLEASE READ: Being a special order model of limited demand, please allow for up to a 2-3 week lead time to produce this order from the time your order is successfully placed.
o Special 6 Degree Upward Angled Version of the original straight 3002 / 3003 design
o Useful in clearing certain taller valve cover designs and also LSX ignition coils
o Designed to match the visual six degree nominal upward angle of the engine
o CNC Machined T6 billet aluminum direct fit firewall mounting plate design
o
This model fits the  earlier GM "long rod / deep" master cylinder design
o
All engines with PS pump on driver's side - compatible with rack and pinion conversions
o For use with disc / drum or disc / disc brakes (not for use with 4 wheel drum brakes)
o Features an adjustable brake pedal rod to allow for a range of brake pedal height adjustment
o Models with 4' / 6' PS line set include overlength hoses with re-usable / re-buildable hose ends
o
Models with pre-assembled PS line set are direct fit for use with stock steering only
o 8.75" installed length from firewall to MC mounting flange - no firewall modifications required
1963 - 1967 Chevrolet Corvette Hydraulic Brake Assist Unit - Model # 3502

o SPECIAL MAXIMUM ENGINE CLEARANCE VERSION of the original straight 3002 / 3003 design
Specially Designed for use with the Tall Deck / TALL VALVE COVER Big Block Engines

o
CNC Machined T6 billet aluminum direct fit firewall mounting plate design

o
All engines with PS pump on driver's side - compatible with rack and pinion conversions
o For use with disc / drum or disc / disc brakes (not for use with 4 wheel drum brakes)
o Features an adjustable brake pedal rod to allow for a range of brake pedal height adjustment
o Models with 4' / 6' PS line set include overlength hoses with re-usable / re-buildable hose ends
o Includes the special vertical bolt pattern master cylinder as part of this package
o 8.75" installed length from firewall to MC mounting flange - no firewall modifications required

Price: $610 THIS IS THE BASE MODEL BRAKE ASSIST UNIT ITSELF - ADD OPTIONS BELOW





NOTE: Part # 3502L is the brake unit itself without power steering line set. Part # 3502 is the brake unit with the 4' power steering line set
This model is identical in all ways to the 3002 model except that it installs at a 6 degree upward angle as opposed to straight
This model is identical in all ways to the 3503 model except for being equipped with the early / deep style long MC pushrod

SHOW PREPARED MODEL

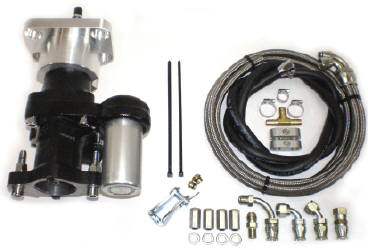

SHOWN WITH PS LINE SET

1963 - 1967 Chevrolet Corvette Hydraulic Brake Assist Unit - Model # 3503
o Special 6 Degree Upward Angled Version of the original straight 3002 / 3003 design
o Useful in clearing certain taller valve cover designs and also LSX ignition coils
o Designed to match the visual six degree nominal upward angle of the engine
o CNC Machined T6 billet aluminum direct fit firewall mounting plate design

o This model fits the later GM "short rod / shallow" master cylinder design
o
All engines with PS pump on driver's side - compatible with rack and pinion conversions
o For use with disc / drum or disc / disc brakes (not for use with 4 wheel drum brakes)
o Features an adjustable brake pedal rod to allow for a range of brake pedal height adjustment
o Models with 4' / 6' PS line set include overlength hoses with re-usable / re-buildable hose ends
o
Models with pre-assembled PS line set are direct fit for use with stock steering only
o
8.75" installed length from firewall to MC mounting flange - no firewall modifications required
Price: $610 THIS IS THE BASE MODEL BRAKE ASSIST UNIT ITSELF - ADD OPTIONS BELOW





NOTE: Part # 3503L is the brake unit itself without power steering line set. Part # 3503 is the brake unit with the 4' power steering line set.
This model is identical in all ways to the 3003 model except that it installs at a 6 degree upward angle as opposed to straight
This model is identical in all ways to the 3502 model except for being equipped with the late / shallow style short MC pushrod
**  SPECIAL BIG BLOCK TALL VALVE  COVER / TALL DECK  MODEL   **
