CNC Machined T6 billet aluminum direct fit firewall mounting plate design
o
This model fits the early
GM "long rod / deep" master cylinder design
(scroll down to see images at the bottom of this page for visual comparison)
o
All engines with PS pump on driver's side - compatible with rack and pinion conversions
o
For use with disc/drum or disc/disc brakes (not for use with 4 wheel drum brakes)
o
Features an adjustable brake pedal rod to allow for a range of brake pedal height adjustment
o
Models with 4' / 6' PS line set include overlength hoses with re-usable / re-buildable hose ends
o
Eliminates the factory stamped steel firewall reinforcement plate
o
6.875
" installed length from firewall to MC mounting flange - no firewall modifications required
1970 - 1974 Mopar E Body / 1971 - 1974 B Body Hydraulic Brake Assist Unit - Model # 3670

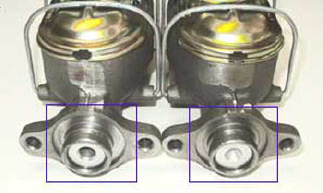

*GM deep vs. shallow master cylinder design:
"early / deep" "late / shallow"
NOTE: Part # 3070L is the brake unit itself without power steering line set. Part # 3070 is the brake unit with the 4' power steering line set
This model is identical in all ways to the 3570 / 3670 models except for being equipped with the late model Mopar MC interface
"early / long MC pushrod" "late / short MC pushrod"
1970 - 1974 Mopar E Body / 1971 - 1974 B Body Hydraulic Brake Assist Unit - Model # 3070
o
CNC Machined T6 billet aluminum direct fit firewall mounting plate design
o

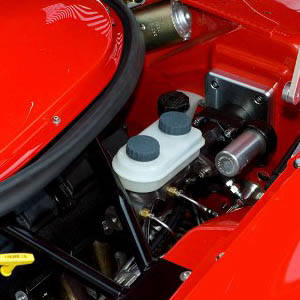

This model fits the late model Mopar MC with plastic reservoir - see images to the right:
o
All engines with PS pump on driver's side - compatible with rack and pinion conversions
o
For use with disc/drum or disc/disc brakes (not for use with 4 wheel drum brakes)
o
Features an adjustable brake pedal rod to allow for a range of brake pedal height adjustment
o
Models with 4' / 6' PS line set include overlength hoses with re-usable / re-buildable hose ends
o
Eliminates the factory stamped steel firewall reinforcement plate
o
6.875
" installed length from firewall to MC mounting flange - no firewall modifications required
NOTE: Part # 3670L is the brake unit itself without power steering line set. Part # 3670 is the brake unit with the 4' power steering line set.
This model is identical in all ways to the 3070 / 3570 models except for being equipped with the GM early / long pushrod MC interface
1970 - 1974 Chrysler E Body Hydraulic Brake Assist Unit - Model # 3674
1970-1974 Chrysler E-Body / 1971-1974 B-Body
NOTE: This model for use with vehicles equipped with factory manual brakes
that would prefer to retain the factory manual brake firewall reinforcement plate
o
TRUE MANUAL TO POWER BRAKE DIRECT BOLT IN UPGRADE!
o
BOLTS DIRECTLY IN PLACE OF THE FACTORY FOUR BOLT MANUAL MC
o
CNC Machined T6 billet aluminum direct fit firewall mounting plate design
o
This model fits the early
GM "long rod / deep" master cylinder design
(scroll down to see images at the bottom of this page for visual comparison)
o
All engines with PS pump on driver's side - compatible with rack and pinion conversions
o
For use with disc/drum or disc/disc brakes (not for use with 4 wheel drum brakes)
o
Features an adjustable brake pedal rod to allow for a range of brake pedal height adjustment
o
Models with 4' / 6' PS line set include overlength hoses with re-usable / re-buildable hose ends
o
Retains the factory stamped steel manual brake spec firewall reinforcement plate
o
6 3/4
" installed length from firewall to MC mounting flange - no firewall modifications required
NOTE: Part # 3674L is the brake unit itself without power steering line set. Part # 3674 is the brake unit with the 4' power steering line set.
This model is identical in all ways to the 3574 / 3074 models except for being equipped with the GM early / long pushrod MC interface
SHOW PREPARED MODEL

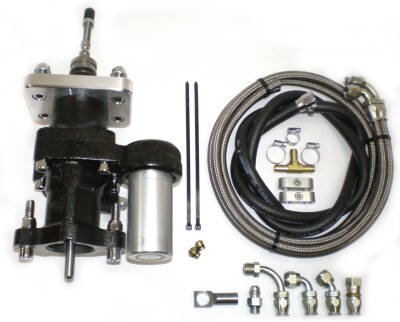

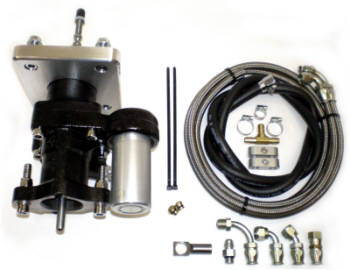

SHOWN WITH PS LINE SET
MC8141 with black reservoir
9/16-20 Front Port - 1/2-20 Rear Port
Matches factory brake line fittings
Front Port = Rear Brake Circuit
Rear Port = Front Brake Circuit
Mopar Spec 3.200" Bolt Centers
MC8144 with white reservoir
Both MC8141 and MC8144 have been proven to work
well with all popular disc / drum OR disc / disc brakes
Model # 3670 installed with
Wilwood # 260-8556P GM
based master cylinder design
with 3.400" MC bolt centers
o
CNC Machined T6 billet aluminum direct fit firewall mounting plate design
o
This model fits the
later
GM "short rod / shallow" master cylinder design
(scroll down to see images at the bottom of this page for visual comparison)
o
All engines with PS pump on driver's side - compatible with rack and pinion conversions
o
For use with disc/drum or disc/disc brakes (not for use with 4 wheel drum brakes)
o
Features an adjustable brake pedal rod to allow for a range of brake pedal height adjustment
o
Models with 4' / 6' PS line set include overlength hoses with re-usable / re-buildable hose ends
o
Eliminates the factory stamped steel firewall reinforcement plate
o
6.875
" installed length from firewall to MC mounting flange - no firewall modifications required
1970 - 1974 Mopar E Body / 1971 - 1974 B Body Hydraulic Brake Assist Unit - Model # 3570
NOTE: Part # 3570L is the brake unit itself without power steering line set. Part # 3570 is the brake unit with the 4' power steering line set.
This model is identical in all ways to the 3070 / 3670 models except for being equipped with the GM late / short pushrod MC interface
Model # 3570 installed with SSBC
GM based master cylinder design
with 3.400" MC bolt centers
and # 5100 chrome slipcover
SHOW PREPARED MODEL
SHOWN WITH PS LINE SET
MC8141 with black reservoir
9/16-20 Front Port - 1/2-20 Rear Port
Matches factory brake line fittings
Front Port = Rear Brake Circuit
Rear Port = Front Brake Circuit
Mopar Spec 3.200" Bolt Centers
MC8144 with white reservoir
Both MC8141 and MC8144 have been proven to work
well with all popular disc / drum OR disc / disc brakes
1970 - 1974 Chrysler E Body Hydraulic Brake Assist Unit - Model # 3074
NOTE: This model for use with vehicles equipped with factory manual brakes
that would prefer to retain the factory manual brake firewall reinforcement plate
o
TRUE MANUAL TO POWER BRAKE DIRECT BOLT IN UPGRADE!
o
BOLTS DIRECTLY IN PLACE OF THE FACTORY FOUR BOLT MANUAL MC
o
CNC Machined T6 billet aluminum direct fit firewall mounting plate design
o
This model fits the late model Mopar MC with plastic reservoir - see images to the right:
o
All engines with PS pump on driver's side - compatible with rack and pinion conversions
o
For use with disc/drum or disc/disc brakes (not for use with 4 wheel drum brakes)
o
Features an adjustable brake pedal rod to allow for a range of brake pedal height adjustment
o
Models with 4' / 6' PS line set include overlength hoses with re-usable / re-buildable hose ends
o
Retains the factory stamped steel manual brake spec firewall reinforcement plate
o
6 3/4
" installed length from firewall to MC mounting flange - no firewall modifications required
NOTE: Part # 3074L is the brake unit itself without power steering line set. Part # 3074 is the brake unit with the 4' power steering line set.
This model is identical in all ways to the 3574 / 3674 models except for being equipped with the late model Mopar MC interface
Model 3074 with
MC39178 installed
'77-'82 C3 Corvette MC8111
1970 - 1974 Chrysler E Body Hydraulic Brake Assist Unit - Model # 3574
NOTE: This model for use with vehicles equipped with factory manual brakes
that would prefer to retain the factory manual brake firewall reinforcement plate
o
TRUE MANUAL TO POWER BRAKE DIRECT BOLT IN UPGRADE!
o
BOLTS DIRECTLY IN PLACE OF THE FACTORY FOUR BOLT MANUAL MC
o
CNC Machined T6 billet aluminum direct fit firewall mounting plate design
o
This model fits the
later
GM "short rod / shallow" master cylinder design
- see images to the right:
(scroll down to see images at the bottom of this page for visual comparison)
o
All engines with PS pump on driver's side - compatible with rack and pinion conversions
o
For use with disc/drum or disc/disc brakes (not for use with 4 wheel drum brakes)
o
Features an adjustable brake pedal rod to allow for a range of brake pedal height adjustment
o
Models with 4' / 6' PS line set include overlength hoses with re-usable / re-buildable hose ends
o
Retains the factory stamped steel manual brake spec firewall reinforcement plate
o
6 3/4
" installed length from firewall to MC mounting flange - no firewall modifications required
NOTE: Part # 3574L is the brake unit itself without power steering line set. Part # 3574 is the brake unit with the 4' power steering line set.
This model is identical in all ways to the 3074 / 3674 models except for being equipped with the GM late / short pushrod MC interface
Model 3574 with '77-'82
Corvette MC39052 installed

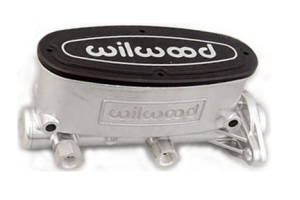

Model # 3674 with the GM
early / long MC pushrod is
a direct fit for the Wilwood
# 260-8556P master cylinder
