Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*

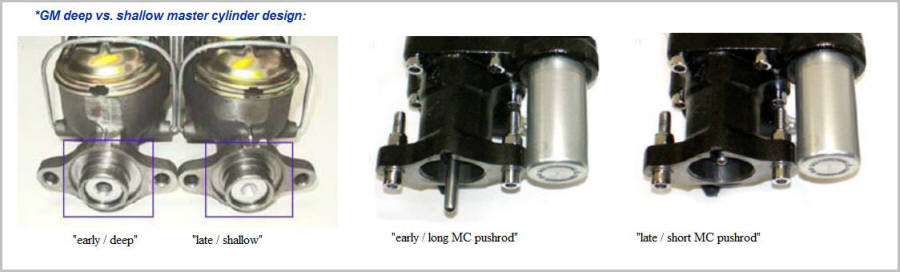

Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing *Durable Chromed Aluminum Finish!
*
3/16" Conventional Flare style Brake Line Connections at the Bottom
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
**
REMOVE THE FACTORY PROPORTIONING VALVE TO USE THIS ITEM**
MASTER CYLINDERS AND BRAKE ACCESSORIES
CPP MASTER CYLINDER WITH BUILT IN ADJUSTABLE PROPORTIONING
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
* Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing *
Durable Chromed Aluminum Finish!
* 1/2-20 Front Port - 9/16-18 Rear Port (ports on left hand side only) * Flare Style Ports -
3/16" and 1/4" Direct Fit Brake Line Tube Nuts Included!
* 7 3/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes

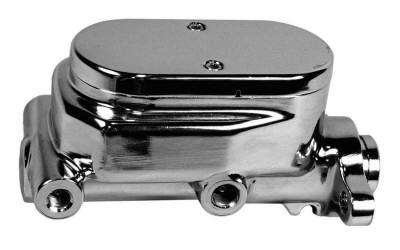

CLASSIC CHROMED ALUMINUM FLAT TOP C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
MASTER CYLINDER #MC8105 - $119.95 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Finish!
*
1/2-20 Front Port - 9/16-18 Rear Port (ports on left hand side only)
*
Flare Style Ports -
3/16" and 1/4" Direct Fit Brake Line Tube Nuts Included!
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED CAST IRON OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Early / Long MC Pushrod Designs Only
*
GM 3.400 Bolt Centers
*
Industry Exclusive Polyurethane Clear Coated and Ovenbaked Finish!
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports -
3/16" and 1/4" Direct Fit Brake Line Tube Nuts Included!
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes

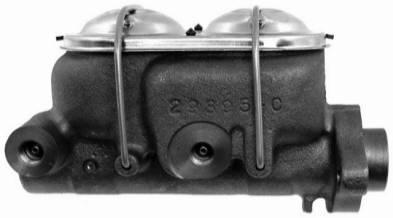

CLASSIC CAST IRON '68-'76 OE STYLE C3 CORVETTE TYPE MC
MASTER CYLINDER #MC8108 - $119.94 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short MC Pushrod Designs Only
*
GM 3.400 Bolt Centers
*
Industry Exclusive Polyurethane Clear Coated and Ovenbaked Finish!
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports -
3/16" and 1/4" Direct Fit Brake Line Tube Nuts Included!
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CAST IRON '77-'82 OE STYLE C3 CORVETTE TYPE MC
MASTER CYLINDER #MC8111 - $119.94 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/4" (1.250") Power Brake Spec Bore Size
*
Fits GM Late / Short MC Pushrod Designs Only
*
GM 3.400 Bolt Centers
*
Industry Exclusive Polyurethane Clear Coated and Ovenbaked Finish!
*
9/16-18 Front Port - 1/2-20 Rear Port
*
Flare Style Ports -
3/16" and 1/4" Direct Fit Brake Line Tube Nuts Included! *
8 1/4" Installed Length - Rear Port = Front Brakes / Front Port = Rear Brakes
CLASSIC CAST IRON '77-'82 OE STYLE GM TRUCK TYPE MC
MASTER CYLINDER #MC8114 - $119.94 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/4" (1.250") Power Brake Spec Bore Size
*
Fits GM Late / Short MC Pushrod Designs Only
*
GM 3.400 Bolt Centers
*
Translucent Plastic Reservoir / Aluminum Main Body Casting
*
9/16-18 Front Port - 1/2-20 Rear Port
*
Flare Style Ports -
3/16" and 1/4" Direct Fit Brake Line Tube Nuts Included!
*
8 1/4" Installed Length - Rear Port = Front Brakes / Front Port = Rear Brakes

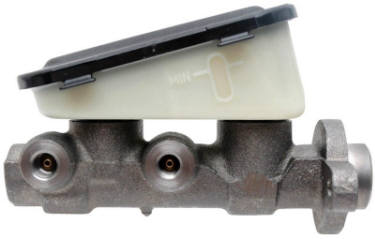

LATE MODEL '92-'99 ALUMINUM OE STYLE GM TRUCK TYPE MC
MASTER CYLINDER #MC8123 - $131.94 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short MC Pushrod Designs Only
*
GM 3.400 Bolt Centers
*
Translucent Plastic Reservoir / Aluminum Main Body Casting
*
9/16-18 Front Port - 1/2-20 Rear Port
*
Flare Style Ports -
3/16" and 1/4" Direct Fit Brake Line Tube Nuts Included!
*
8 1/4" Installed Length - Rear Port = Front Brakes / Front Port = Rear Brakes
LATE MODEL '92-'99 ALUMINUM OE STYLE GM TRUCK TYPE MC
MASTER CYLINDER #MC8126 - $131.94 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1" (1.00") Power Brake Spec Bore Size
*
Fits GM Late / Short MC Pushrod Designs Only
*
GM 3.400 Bolt Centers / Brake lines on LH / Driver's Side
*
Translucent Plastic Reservoir / Aluminum Main Body Casting
*
9/16-18 Front Port - 1/2-20 Rear Port
*
Flare Style Ports -
3/16" and 1/4" Direct Fit Brake Line Tube Nuts Included!
*
6 3/4" Installed Length - Rear Port = Front Brakes / Front Port = Rear Brakes

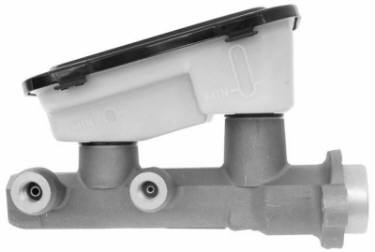

LATE MODEL 2000 GM ALUMINUM OE STYLE GM S-SERIES MC
MASTER CYLINDER #MC8129 - $143.94 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1" (1.00") Power Brake Spec Bore Size
*
Fits GM Late / Short MC Pushrod Designs Only
*
GM 3.400 Bolt Centers / Brake lines on RH / Passenger's Side
*
Translucent Plastic Reservoir / Aluminum Main Body Casting
*
1/2-20 Front Port - 1/2-20 Rear Port
*
Flare Style Ports -
3/16" and 1/4" Direct Fit Brake Line Tube Nuts Included!
*
6 3/4" Installed Length - Rear Port = Front Brakes / Front Port = Rear Brakes
LATE MODEL 2000 GM ALUMINUM OE STYLE GM S-SERIES MC
MASTER CYLINDER #MC8132 - $143.94 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits Mopar MC Pushrod Designs Only
*
Chrysler 3.200 Bolt Centers / Brake lines on LH / Driver's Side
*
Black Plastic Reservoir / Aluminum Main Body Casting
*
9/16-20 Front Port - 1/2-20 Rear Port
*
Flare Style Ports -
3/16" Direct Fit Brake Line Tube Nuts Included!
*
8 1/4" Installed Length - Rear Port = Front Brakes / Front Port = Rear Brakes

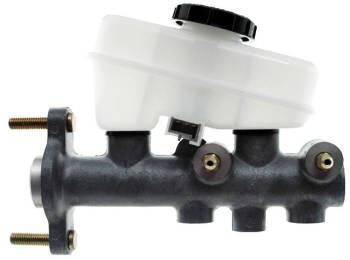

LATE MODEL MOPAR ALUMINUM OE STYLE D/W SERIES MC
MASTER CYLINDER #MC8141 - $119.94 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short MC Pushrod Designs Only
*
GM 3.400 Bolt Centers
*
Industry Exclusive Polyurethane Clear Coated and Ovenbaked Finish!
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Direct Fit Brake Line Tube Nuts Included!
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CAST IRON '70-'79 OE STYLE Z-28 CAMARO TYPE MC
MASTER CYLINDER #MC8117 - $119.94 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1" (1.00") Power Brake Spec Bore Size
*
Fits Ford Classic MC Pushrod Designs Only
*
Ford 3.200 Bolt Centers
*
Industry Exclusive Polyurethane Clear Coated and Ovenbaked Finish!
*
1/2-20 Front Port - 3/8-24 Rear Port
*
Flare Style Ports - 3/16" Direct Fit Brake Line Tube Nuts Included! *
7 1/4" Installed Length - Rear Port = Front Brakes / Front Port = Rear Brakes
CLASSIC CAST IRON '67-'73 OE STYLE MUSTANG TYPE MC
MASTER CYLINDER #MC8120 - $119.94 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
24mm with 36mm Quick Take Up Design Power Brake Spec Bore Size
*
Fits GM Late / Short MC Pushrod Designs Only
*
GM 3.400 Bolt Centers
*
Translucent Plastic Reservoir / Aluminum Main Body Casting
*
9/16-18 Front Port - 1/2-20 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Direct Fit Brake Line Tube Nuts Included!
*
8 1/4" Installed Length - Rear Port = Front Brakes / Front Port = Rear Brakes
GM ALUMINUM OE STYLE ANGLED TANK '84-'88 G-BODY MC
MASTER CYLINDER #MC8135 - $119.95 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1" (1.00") Bore Power Brake Spec Bore Size
*
Fits GM Late / Short MC Pushrod Designs Only
*
GM 3.400 Bolt Centers
*
Translucent Plastic Reservoir / Cast Iron Main Body Casting
*
9/16-18 Front Port - 1/2-20 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Direct Fit Brake Line Tube Nuts Included!
*
7 3/4" Installed Length - Rear Port = Front Brakes / Front Port = Rear Brakes
GM CAST IRON OE STYLE ANGLED TANK '78-'83 G-BODY MC
MASTER CYLINDER #MC8138 - $109.95 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits Mopar MC Pushrod Designs Only
*
Chrysler 3.200 Bolt Centers / Brake lines on LH / Driver's Side
*
Translucent Plastic Reservoir / Aluminum Main Body Casting
*
9/16-20 Front Port - 1/2-20 Rear Port
*
Flare Style Ports -
3/16" Direct Fit Brake Line Tube Nuts Included!
*
8 1/4" Installed Length - Rear Port = Front Brakes / Front Port = Rear Brakes
LATE MODEL MOPAR ALUMINUM OE STYLE D/W SERIES MC
MASTER CYLINDER #MC8144 - $119.94 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1" (1.00") Power Brake Spec Bore Size
***VERTICAL BOLT PATTERN*** *
Fits '96-'99 OE Mustang Hydroboost MC Pushrod Designs Only
*
Ford 3.200 Bolt Centers / Brake lines on BOTTOM Side
*
Translucent Plastic Reservoir / Aluminum Main Body Casting
*
10 X 1 MM Front Port - 12 X 1 mm Rear Port
*
ISO Bubble Style Ports - 3/16" Flare Brake Line Adapters & Tube Nuts Included!
*
8 1/4" Installed Length - Rear Port = Front Brakes / Front Port = Rear Brakes
'96-'99 FORD ALUMINUM OE STYLE MUSTANG HYDROBOOST MC

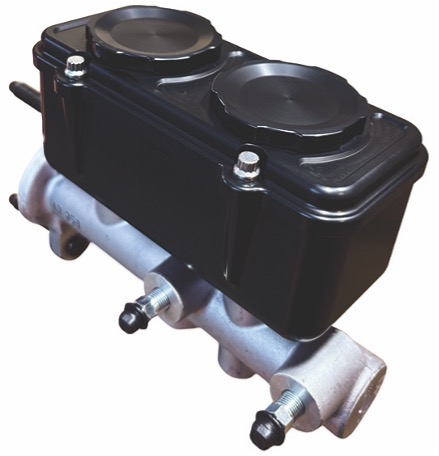

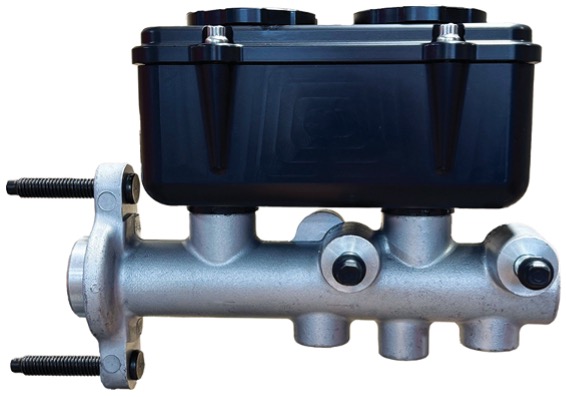

MASTER CYLINDER #MC8147 - 185.94 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
57% Maximum to 0% Pressure Adjustment range (reduction only)
*
3/16" AND 1/4" Brake line tube fittings / adapters supplied! *
Knob adjustable 100 PSI Minimum / 3000 PSI Maximum Range
*
4" H X 1 3/4" W X 1" Overall Dimensions
*
May be installed in any position between Master Cylinder and Rear Brakes ***REMOVE THE FACTORY PROPORTIONING VALVE TO USE THIS ITEM***
***Compatible with all known brake fluids ***
BLACK ANODIZED INLINE BRAKE PROPORTIONING VALVE
BRAKE PROPORTIONING VALVE #APV1 59.94 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
57% Maximum to 0% Pressure Adjustment range (reduction only)
*
3/16" AND 1/4" Brake line tube fittings / adapters supplied! *
Knob adjustable 100 PSI Minimum / 3000 PSI Maximum Range
*
4 1/4" H X 1 3/4" W X 1" Overall Dimensions
*
May be installed in any position between Master Cylinder and Rear Brakes ***REMOVE THE FACTORY PROPORTIONING VALVE TO USE THIS ITEM***
***Compatible with all known brake fluids ***
SILVER ALUMINUM INLINE BRAKE PROPORTIONING VALVE
BRAKE PROPORTIONING VALVE #APV2 59.94 ****
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
1 1/8" (1.125") Power Brake Spec Bore Size
*
Fits GM Late / Short and GM Early / Long MC Pushrod Designs
*
Slotted MC Mounting Holes to accomodate 3.2" to 3.4" Spacing
*
Durable Chromed Aluminum Finish
*
1/2-20 Front Port - 9/16-18 Rear Port
*
Flare Style Ports - 3/16" and 1/4" Brake Line Tube Nuts Included
*
8 1/4" Installed Length - Front Port = Front Brakes / Rear Port = Rear Brakes
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
Holds 10 PSI of Residual Brake Line Pressure to Brakes at Wheels
*
3/16" AND 1/4" Brake Line Tube Fittings / Adapters Supplied! *
Assists in Maintaining Consistent Brake Pedal Height and Response
*
2 1/8" L X 3/4" W Overall Dimension
*
May be installed in any position between Master Cylinder and Brakes
* 1/4" National Pipe Thread Inlet / Outlet
***Compatible with all known brake fluids ***
RED 10# ALUMINUM INLINE RESIDUAL BRAKE PRESSURE VALVE
BRAKE RESIDUAL PRESSURE VALVE #RPV10 20.34 ****
CLASSIC CHROMED ALUMINUM OE STYLE C3 CORVETTE TYPE MC
*
Universal Design for Disc / Drum OR Disc / Disc Brakes
*
Holds 2 PSI of Residual Brake Line Pressure to Brakes At Wheels
*
3/16" AND 1/4" Brake Line Tube Fittings / Adapters Supplied!
*Assists in Maintaining Consistent Brake Pedal Height and Response *2 1/8" L X 3/4" W Overall Dimension *May be installed in any position between Master Cylinder and Brakes
* 1/4" National Pipe Thread Inlet / Outlet
***Compatible with all known brake fluids ***
BLUE 2# ALUMINUM INLINE BRAKE RESIDUAL PRESSURE VALVE
