o Hose Size: AN-6
o Inner Diameter: .320"
o Outer Diameter: .430"
o Pressure Rating: 2500 PSI
o Vacuum Rating: 28 INCHES / HG
o Minimum Bend Radius: 4.00"
o For use with Aeroquip hose ends only

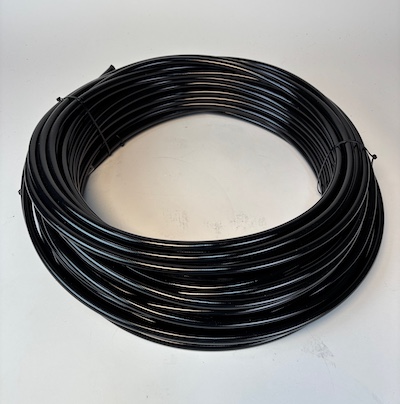

Aeroquip's TFE racing hose uses an extruded Teflon® core with an outer stainless steel braid for strength. It's made for use with power steering, race brake, transmission, clutch, gauge, air conditioning, and nitrous oxide systems. With a temperature range of -100 to 450 degrees F (-73C to +232C), and a maximum pressure rating of 3,000 psi, it can handle any plumbing job safely and securely while also looking great!

o 18mm x 1.5 Male Metric O-Ring to AN-6 Male Adapter
o Silver Zinc Dichromate Finish Mild Steel
o Fits most 1980 and newer Saginaw Steering Box High
   Pressure Inlet Ports
o Fits most 1980 and newer GM / Chrysler Hydraulic Brake
   Assist Unit High Pressure Inlet Ports (some Ford models)

AEROQUIP FBM1141 HOSE END

o Direct Fit 3/8 Male Flare 45 Degree Hose End
o S.A.E. 37 / 45 Flare (JIC/AN) 5/8-18 thread
o For use with Aeroquip TFE AN-6 Spec Hose
o Silver Zinc Dichromate Finish Mild Steel
o Re-usable and reconfigurable using common hand tools
o Fits most 1979 and older Saginaw P Series Pumps
with 3/8 flare female output

AEROQUIP FBM3823 AN–6 TFE
HOSE END REPLACEMENT SLEEVES

o Pack of 5 Brass Replacement Sleeves
for TFE AN-6 Hose Ends

AEROQUIP FBM1143 HOSE END

o Direct Fit 5/16 Male Flare 90 Degree Hose End
o S.A.E. 37 / 45 Flare (JIC/AN) 1/2-20 thread
o For use with Aeroquip TFE AN-6 Spec Hose
o Silver Zinc Dichromate Finish Mild Steel
o Re-usable and reconfigurable using common hand tools
o Fits certain Ford Steering Boxes

AEROQUIP FBM1138 HOSE END

o Direct Fit 3/8 Male Flare Straight Hose End
o S.A.E. 37 / 45 Flare (JIC/AN) 5/8-18 thread
o For use with Aeroquip TFE AN-6 Spec Hose
o Silver Zinc Dichromate Finish Mild Steel
o Re-usable and reconfigurable using common hand tools
o Fits most 1979 and older Saginaw P Series Pumps
with 3/8 flare female output

AEROQUIP FBM1144 HOSE END

o Direct Fit 3/8 Male Flare 90 Degree Hose End
o S.A.E. 37 / 45 Flare (JIC/AN) 5/8-18 thread
o For use with Aeroquip TFE AN-6 Spec Hose
o Silver Zinc Dichromate Finish Mild Steel
o Re-usable and reconfigurable using common hand tools
o Fits most 1979 and older Saginaw P Series Pumps
with 3/8 flare female output

o Rated at 350 PSI Working Pressure
o .375" Inner Diameter / .625" Outer Diameter
o Extreme Duty Abrasion / Chemical Resistant Construction
o Excellent for use as power steering low pressure return line
o Supplied standard with all Hydratech Systems and PS Line Sets

EARLS 961955ERL AN-6 ADAPTER

o 16mm x 1.5 Male Metric O-Ring to AN-6 Male Adapter
o Silver Zinc Dichromate Finish Mild Steel
o Fits most 1980 and newer Saginaw Steering Box Low
   Pressure Outlet Ports
o Fits most 1980 and newer GM / Chrysler Hydraulic Brake
   Assist Unit High Pressure Outlet Ports
o Fits most 1980 and newer Saginaw P Series Pumps with
   Metric O-ring female output

AEROQUIP FBM1143 HOSE END

AEROQUIP FBM1134 HOSE END

o Direct Fit 5/8-18 Female Flare Straight Hose End
o S.A.E. 37 / 45 Flare (JIC/AN) 5/8-18 thread
o For use with Aeroquip TFE AN-6 Spec Hose
o Silver Zinc Dichromate Finish Mild Steel
o Re-usable and reconfigurable using common hand tools
o Fits early Saginaw P and Thomson Style pumps with
S.A.E. 45 Degree Flare MALE output nipple
NOTE: This is not an AN-6 hose end (use FBM1103 for AN-6)

AEROQUIP FBM1143 HOSE END

AEROQUIP FBM1155 HOSE END

o Direct Fit 5/16 Male Flare 45 Degree Hose End
o S.A.E. 37 / 45 Flare (JIC/AN) 1/2-20 thread
o For use with Aeroquip TFE AN-6 Spec Hose
o Silver Zinc Dichromate Finish Mild Steel
o Re-usable and reconfigurable using common hand tools
o Fits certain Ford Steering Boxes

AEROQUIP FBM1143 HOSE END

AEROQUIP FBM1137 HOSE END

o Direct Fit 5/16 Male Flare 45 Straight Hose End
o S.A.E. 37 / 45 Flare (JIC/AN) 1/2-20 thread
o For use with Aeroquip TFE AN-6 Spec Hose
o Silver Zinc Dichromate Finish Mild Steel
o Re-usable and reconfigurable using common hand tools
o Fits certain Ford Steering Boxes

AEROQUIP FBM1143 HOSE END

AEROQUIP FBM1136 HOSE END

o Direct Fit 5/8-18 Female Flare 90 Degree Hose End
o S.A.E. 37 / 45 Flare (JIC/AN) 5/8-18 thread
o For use with Aeroquip TFE AN-6 Spec Hose
o Silver Zinc Dichromate Finish Mild Steel
o Re-usable and reconfigurable using common hand tools
o Fits early Saginaw P and Thomson Style pumps with
S.A.E. 45 Degree Flare MALE output nipple
NOTE: This is not an AN-6 hose end (use FBM1122 for AN-6)

AEROQUIP FBM1143 HOSE END

AEROQUIP FBM1114 HOSE END

o Direct Fit 5/8-18 Female Flare 45 Degree Hose End
o S.A.E. 37 / 45 Flare (JIC/AN) 5/8-18 thread
o For use with Aeroquip TFE AN-6 Spec Hose
o Silver Zinc Dichromate Finish Mild Steel
o Re-usable and reconfigurable using common hand tools
o Fits early Saginaw P and Thomson Style pumps with
S.A.E. 45 Degree Flare MALE output nipple
NOTE: This is not an AN-6 hose end (use FBM1112 for AN-6)

Hose ends for tight squeezes. Aeroquip reusable hose ends are easier to install than cutter-style fittings, and more user-friendly. With their compression-style design, they can be reused without damaging the fitting, and the nipple pilot prevents damage to the inner tube.

o AN-6 90 Degree Female Hose End
o S.A.E. 37 / 45 Flare (JIC/AN) 9/16-18 thread
o For use with Aeroquip TFE AN-6 Spec Hose
o Silver Zinc Dichromate Finish Mild Steel
o Re-usable and reconfigurable using common hand tools

AEROQUIP FBM1103 HOSE END

o AN-6 Straight Female Hose End
o S.A.E. 37 / 45 Flare (JIC/AN) 9/16-18 thread
o For use with Aeroquip TFE AN-6 Spec Hose
o Silver Zinc Dichromate Finish Mild Steel
o Re-usable and reconfigurable using common hand tools

AEROQUIP FBM1112 HOSE END

o AN-6 45 Degree Female Hose End
o S.A.E. 37 / 45 Flare (JIC/AN) 9/16-18 thread
o For use with Aeroquip TFE AN-6 Spec Hose
o Silver Zinc Dichromate Finish Mild Steel
o Re-usable and reconfigurable using common hand tools

o 7/16 Male Inverted Flare to AN-6 Male Adapter
o S.A.E. 37 / 45 Flare (JIC/AN) 11/16-18 thread
o Silver Zinc Dichromate Finish Mild Steel
o Fits most 1979 and older Saginaw Steering Box High
Pressure Inlet Ports

HYDRATECH HBS9409 AN-6 ADAPTER

o 1/4 Male Inverted Flare to AN-6 Male Adapter
o S.A.E. 37 / 45 Flare (JIC/AN) 7/16-24 thread
o Silver Zinc Dichromate Finish Mild Steel
o Fits C2 / C3 Corvette Steering Control Valve
High Pressure Inlet Port / Various Alternate Applications

AEROQUIP FBM2964 AN-6 ADAPTER

o 3/8 Male Inverted Flare to AN-6 Male Adapter
o S.A.E. 37 / 45 Flare (JIC/AN) 5/8-18 thread
o For use with Aeroquip TFE AN-6 Spec Hose
o Silver Zinc Dichromate Finish Mild Steel
o Fits most 1979 and older Saginaw P Series Pumps with
3/8 flare female output / Saginaw Box Low Pressure Return

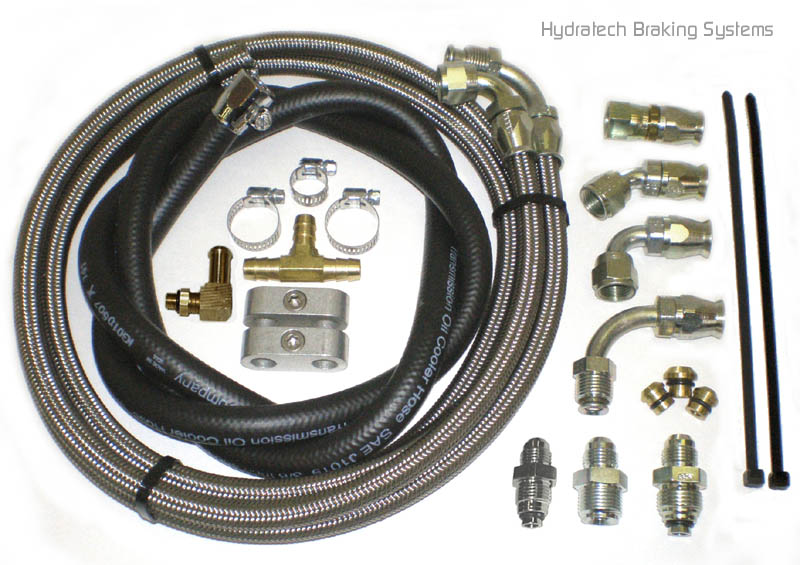

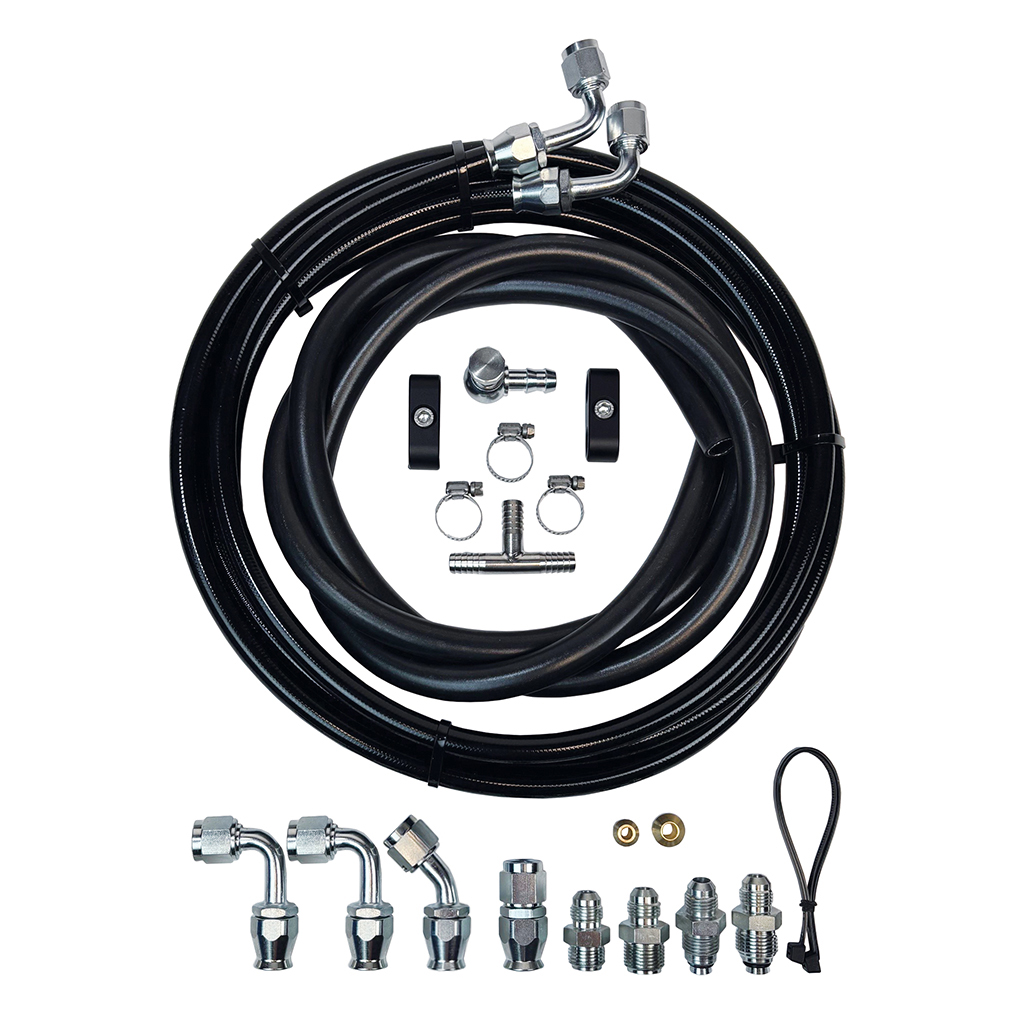

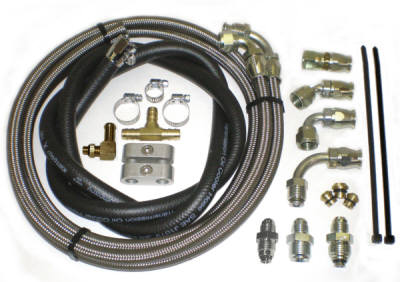

o Genuine Aeroquip TFE Series AN-6 braided SS high pressure lines
o Brake assist unit hose end connections are pre-assembled
o Trim to fit for length on the PS pump and steering gear ends
o Rebuildable / re-usable genuine Aeroquip hose ends (no crimping required)
o For use with '80 and newer 18mm / 16mm O-ring style brake assist units
o For use with O-ring and / or flare style Saginaw full size or mini PS pumps
o Also includes Parker HD low pressure return line and T fitting, billet line
separators, straight, 45, and 90 degree AN-6 hose ends, flare style
steering gear box adapter, and low profile 90 degree return line nipple

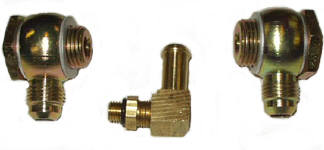

AEROQUIP FBM2608 AN-6 ADAPTER

o 2 Piece Design 5/16-24 O-ring Male to 3/8 Male Hose Barb Low Pressure
Return Line Adapter
o Surface Seal Type Adapter with O-ring Seal
o 18mm x 1.5 Metric to AN-6 Male High Pressure Inlet Port Banjo Fitting
o 16mm x 1.5 Metric to AN-6 Male High Pressure Outlet Port Banjo Fitting
o .850" Banjo Fitting Installed Height
o Fits most all Bendix Type I and Type II Hydraulic Brake Assist Units

HYDRATECH HBS9408 AN-6 ADAPTER

o 1/2-20 Male Thread to AN-6 Male Nipple
o S.A.E. 37 / 45 Flare (JIC/AN) 1/2-20 thread
o Surface Seal Type Adapter with O-ring Seal
o Zinc Dichromate Finish Mild Steel - 5/8 Hex Size
o Fits certain Mopar Steering Gears

AEROQUIP FBM2872 AN-6 ADAPTER

o Weld / Braze AN-6 Male Nipples with .380” I.D.
o S.A.E. 37 Flare (JIC/AN) 9/16-18 thread
o For Welding / Brazing to Steel Tubing
o 1018 Unplated Finish Mild Steel - 5/8 Hex Size

HYDRATECH HBS9104 INSERT T FITTING

o High Flow High Quality 3/8 Stainless Steel T Fitting
o Used to bring two low pressure return lines together
into one push on PS pump return line nipple
o The installation of a second dedicated low pressure return
line nipple into the PS pump reservoir is recommended

HYDRATECH HBS9106 FLARE INSERTS

o This pair of inserts may be used to convert a typical O-ring
style port for use with flare style fittings
o Includes one 5/16 Tube Seat and one 3/8 Tube seat
o These inserts will allow the use of conventional flare
style adapters in certain applications

AEROQUIP FBM2963 AN-6 ADAPTER

o 5/16 Male Inverted Flare to AN-6 Male Adapter
o S.A.E. 37 / 45 Flare (JIC/AN) 1/2-20 thread
o For use with Aeroquip TFE AN-6 Spec Hose
o Silver Zinc Dichromate Finish Mild Steel
o Fits certain Ford Steering Boxes

HYDRATECH HBS9100 LOW PROFILE RETURN LINE HOSE NIPPLE

o 5/16-24 O-ring Male to 1/8 NPT Male
o 1/8 NPT Female 90 Degree 3/8 Push On Hose Barb Fitting
o Surface Seal Type Adapter with O-ring Seal
o Low profile 2 Piece Hydraulic Brake Assist Return Line
Fitting with .825” Installed Height
o Fits most all Bendix Type I and Type II Hydraulic Brake
Assist Units with 5/16-24 Right Hand Thread

HYDRATECH HBS9101 AN-6 RETURN LINE ADAPTER

o 5/16-24 O-ring Male to AN-6 Male 5/8 Hex Size
o S.A.E. 37 / 45 Flare (JIC/AN) 9/16-18 thread
o Surface Seal Type Adapter with O-ring Seal
o Silver Zinc Dichromate Finish Mild Steel
o Low profile Hydraulic Brake Assist Return Line AN-6
Adapter with .750” Installed Height
o Fits most all Bendix Type I and Type II Hydraulic Brake
Assist Units with 5/16-24 Right Hand Thread

* WARNING: This HBS-9101 adapter installs into a very small 5/16” port on the brake assist unit, and it is therefore VERY easy to overtorque this fitting (which will result in casting thread strippage). This adapter is to be carefully torqued to 10 Foot Pounds as installed into the brake assist unit. You must then hold this fitting absolutely stationary with one wrench while tightening the mating hose end to this adapter with a second wrench to insure proper levels of success in your installation. Please understand that there is absolutely no warranty expressed or implied per the nature of this design.

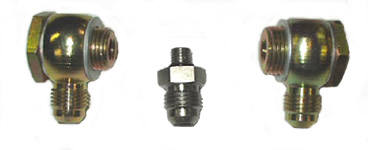

o 5/16-24 O-ring Male to AN-6 Male Return Line Adapter
o Zinc Dichromate Plated Mild Steel with 5/8 Hex Size Return Line Adapter
o Surface Seal Type Adapter with O-ring Seal
o 18mm x 1.5 Metric to AN-6 Male High Pressure Inlet Port Banjo Fitting
o 16mm x 1.5 Metric to AN-6 Male High Pressure Outlet Port Banjo Fitting
o .850" Banjo Fitting Installed Height
o Fits most all Bendix Type I and Type II Hydraulic Brake Assist Units

HYDRATECH HBS9407 AN-6 ADAPTER

o 9/16 -18 Male Thread to AN-6 Male Nipple
o S.A.E. 37 / 45 Flare (JIC/AN) 9/16-18 thread
o Surface Seal Type Adapter with O-ring Seal
o Zinc Dichromate Finish Mild Steel - 11/16 Hex Size
o Fits certain Ford Applications

HYDRATECH HBS9406 AN-6 ADAPTER

o 14mm x 1.5 Male Thread to AN-6 Male Nipple
o Surface Seal Type Adapter with captured O-ring
o Silver Zinc Dichromate Finish Mild Steel - 11/16 Hex Size
o Fits most 1993 and newer Ford Rack and Pinion Low
Pressure Ports / Various Alternate 14mm x 1.5 Applications

HYDRATECH HBS9405 AN-6 ADAPTER

o 16mm x 1.5 Male Thread to AN-6 Male Nipple
o Surface Seal Type Adapter with captured O-ring
o Silver Zinc Dichromate Finish Mild Steel - 7/8 Hex Size
o Fits most 1993 and newer Ford PS Pump Female Metric
Output Ports / Various Alternate 16mm x 1.5 Applications

AEROQUIP FBM3649 TIN DUST CAPS

o S.A.E. 37 / 45 Flare (JIC/AN) 9/16-18 thread
o Heat resistant aluminum alloy
o These dust caps install onto any AN-6 male nipple
to keep dust and dirt out during service or storage
o Note that these dust caps should not be used
where a leak free fluid seal is required

EARLS 900307ERL CHROMED ECONOFIT

o Essentially just a neat and clean way to handle
push on type low pressure PS hose connections
o Chromed Finish Aluminum Housing
o Stainless Steel Internal Worm Gear Hose Clamp
o For use with .625” O.D. Push On Type Low Pressure
PS Return Hose (such as the Parker hose below)

HYDRATECH HBS9105 AN-6 T FITTING

o S.A.E. 37 / 45 Flare (JIC/AN) 9/16-18 thread
o Silver Zinc Dichromate Finish Mild Steel
o May be used to bring two low pressure steering system return
lines together into one connection on the PS pump reservoir
o The installation of a second dedicated low pressure return
line nipple into the PS pump reservoir is recommended

AEROQUIP FBM1442 AN-6 SOCKETLESS

o S.A.E. 37 / 45 Flare (JIC/AN) 9/16-18 thread
o Silver Zinc Dichromate Finish Mild Steel
o Can be used to connect a standard push on class
3/8 low pressure return hose to an AN-6 nipple

AEROQUIP FBM1439 AN-6 SOCKETLESS

o S.A.E. 37 / 45 Flare (JIC/AN) 9/16-18 thread
o Silver Zinc Dichromate Finish Mild Steel
o Can be used to connect a standard push on class
3/8 low pressure return hose to an AN-6 nipple
